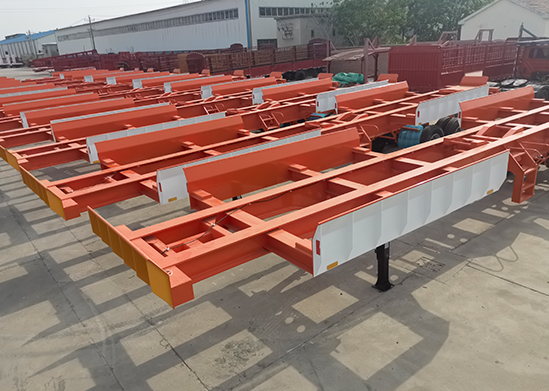

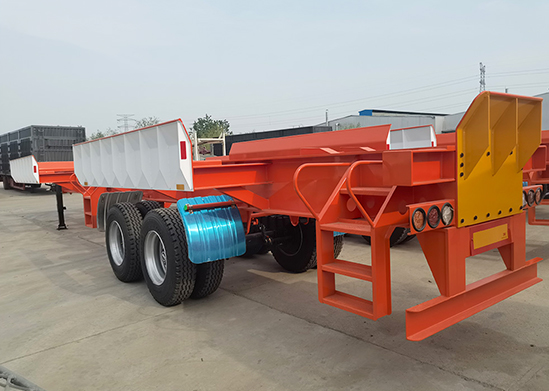

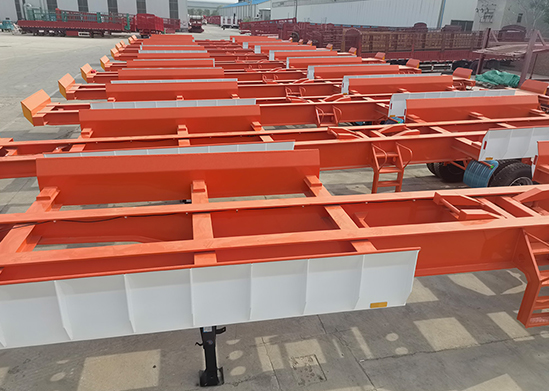

It is used for the transportation of various containers such as 20, 40, 45, 48, 53 feet, etc.
The semi-trailer is designed with reasonable structure, reliable operation, beautiful appearance and full potential.
It is used for the transportation of various containers such as 20, 40, 45, 48, 53 feet, etc.
The semi-trailer is designed with reasonable structure, reliable operation, beautiful appearance and full potential.
The products of dock skeleton semi-trailer have diverse options and can be customized according to the individual needs of customers.
The steel comes from large steel mills at home and abroad; the main outsourcing parts are made of well-known parts manufacturers at home and abroad with reliable quality.
The whole semi-trailer is shot blasted to eliminate welding stress, pre-sprayed with anti-rust primer, and the paint system has good anti-corrosion and anti-rust performance. Cheap price, good quality, welcome to buy.

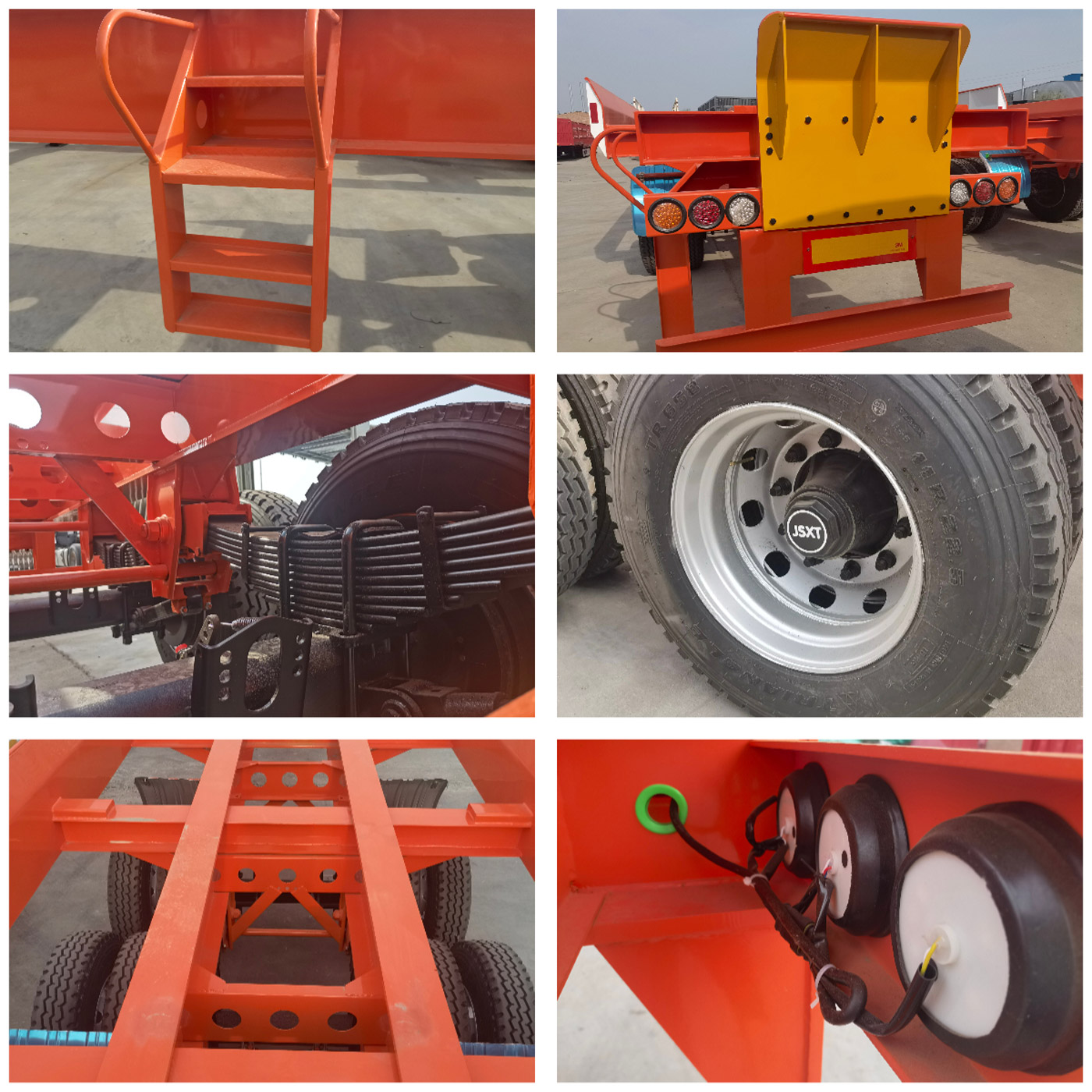

Standard configuration of 40 feet dock skeleton truck: longitudinal beam height 480mm, upper wing plate 14mm, lower wing plate 16mm, web plate 8mm, 2 tool boxes, 2 spare tire racks, 8 sets of container locks, three Fuhua 13T axles, 28T single-action outriggers, 12 national joint warranty 12R22.5 vacuum tires, 2 chain type spare tire racks.
| Product Name | 60-ton 40-foot dock skeleton transporter | Warranty Period | 12 Months | |
| Shipping Media | 40ft, 2*20ft and 1*20ft containers and bulk cargo | Production cycle | 15 days | |
| Dimension | 13700*2770*1692 | Overall mass | 67 tons | |
| Self-weight | About 7 tons | Load | 60 ton | |
| Frame body configuration | Traction pin height | 1300mm | Front/rear suspension | / |
| wheelbase | 1310mm | tread | 2050mm | |
| Item | Material | Specification | ||
| beam | Q345B | Cross-sectional height 500mm, 16/10/18 synthetic I-beam, material Q345B | ||
| Crossbeam | Q345B | 200*200*8 square tube | ||
| Locks | Automatic container warp stopper | 6 unit | ||
| Accessories | Suspension | 2-axis heavy-duty mechanical suspension | Plate Spring | 8 unit 90*16*10 |
| Axle | 16T/fuwa | Number of axles | 2 | |
| Tires | 12R22.5 | Number of tires | 8 | |
| Steel Rings | 9.0R22.5 | Number of steel rings | 8 | |
| Leg support | 28ton | Traction pin specifications |
50# or 90# interchangeable type | |
| Braking System | Brake Valve Brands | WABCO | Brake air chamber | T30/30-*4 |
| Braking System | Emergency brake system, air brake, double air pipeline, 4*T30/30 brake air chamber, two*40L air storage tanks | |||
| Electrical circuit system | Circuit sockets | 7-hole socket | Voltage | 24v |
| Lamps | no | |||
| other | Toolbox | 1 unit | Tools | Shaft head wrench, rocker |
| spare tire carrier | 1 unit | |||
| color | According to customer requirements | |||
| painting | Acrylic anti-corrosion paint | |||
