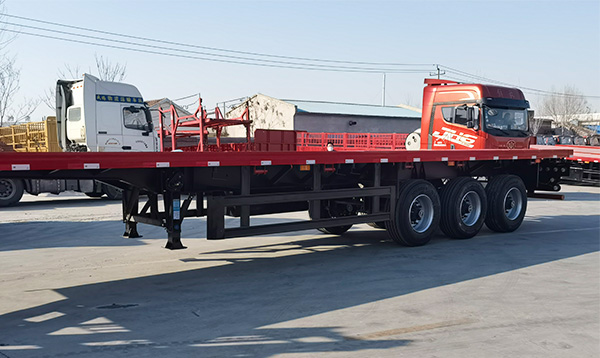

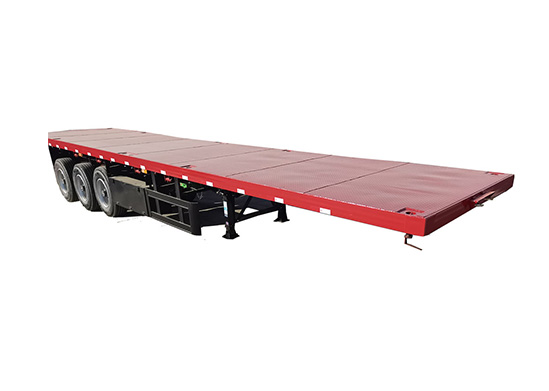

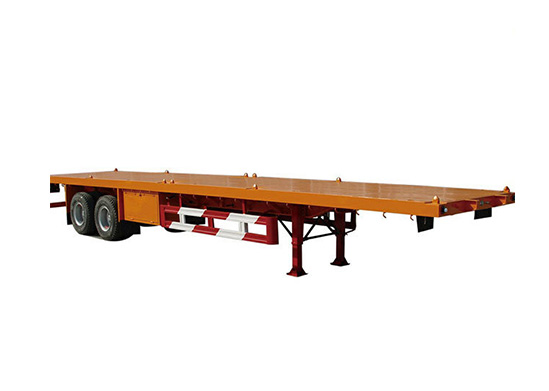

Flatbed semi-trailer can transport containers and tank structure of semi-trailer. The main structure of the vehicle is straight beam or front neck small gooseneck style. Mainly used for ships, ports, routes, highways, transit stations, bridges, tunnels, multimodal transport matching logistics system.
Flatbed semi-trailer can transport containers and tank structure of semi-trailer. The main structure of the vehicle is straight beam or front neck small gooseneck style. Mainly used for ships, ports, routes, highways, transit stations, bridges, tunnels, multimodal transport matching logistics system.
1.Specifically used for the transportation of various containers. Can be used repeatedly for a long time, with sufficient strength.
2.Transfer cargo, can be directly loaded in the consignor's warehouse, transported to the consignee's warehouse to unload, midway change the car, ship, no need to take out the goods from the box to change.
3.It can be quickly loaded and unloaded, and can be directly and conveniently changed from one means of transport to another.
4.It is easy to fill and unload the cargo to meet the individual needs of customers. According to customer needs workwear guarantee, stable quality and reliable performance.

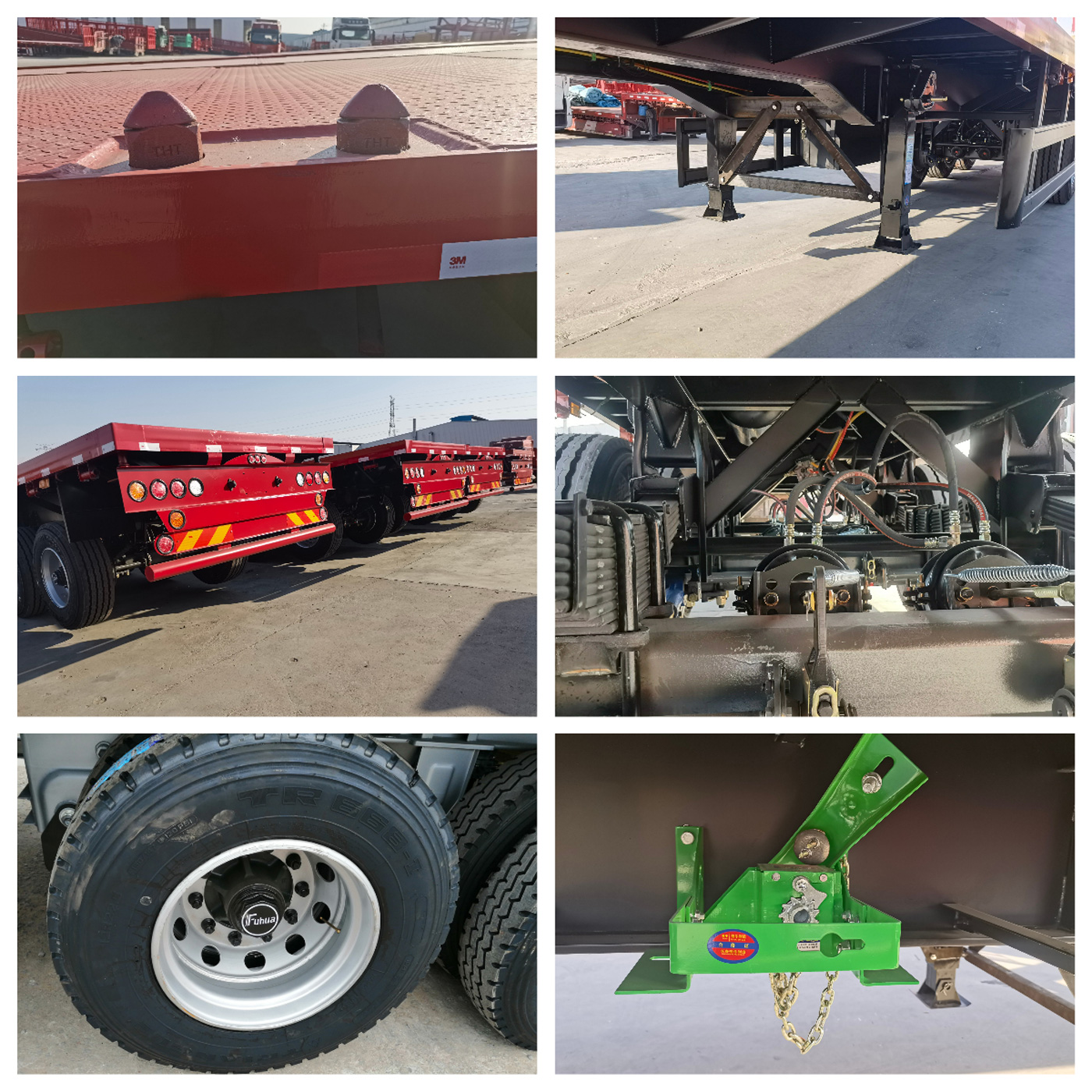

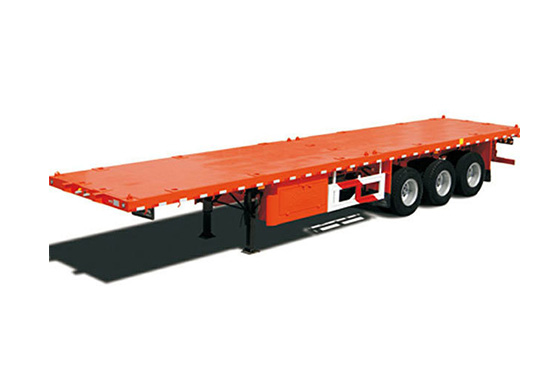

| Parameters of the 40ft flatbed semi trailer | ||||
| Dimension | 12500×2500×1657 | |||
| Loading Capacity | 50T | |||
| Tare Weight | About 7T | |||
| Axle | 3* 13Ton FUWA brand axle | |||
| Rim | 12pcs (9.0-22.5) | |||
| Tire | 12pcs (12R22.5); CHENGSHAN brand Tire | |||
| Suspension | Mechanical suspension | |||
| King pin | JOST 2.0 or 3.5inch bolts type or Welding type | |||
| Support leg | 25Ton FUWA (Double speed) | |||
| Main beam | Height: 500mm upper plate thickness is 14mm, middle plate thickness is 8 mm, down plate thickness is16mm; Material is Q345 Carbon Steel. The floor is 3mm ,Material is Q235 Carbon Steel. |
|||
| Side beam | 16mm channel steel | |||
| Cross Beam | 22 unit Steel Channel Beam | |||
| Brake chamber | A system with emergency brake and parking brake; Dual line ,air brake, piggyback spring on all axles; Six units of T30/30 chamber; one units of reliable local brand 40L air tank; |
|||
| Valve | WABCO valve | |||
| Electrical System | 24V 7-pin ISO 1185 socket; two sets of reliable, local brand standard rear light, turn light, rear reflector, side light, side reflector etc. One set of 6-core standard Cable. |
|||
| Tool box | One piece, 1.6m×0.5m×0.5m(Size can be chosen freely) (equipped with 1 unit tyre spanner, 1 unit gudgeon sleeve and 1 unit cranking bar) |
|||
| Painting | Sand blasting before painting one coats of primer, anti corrosion two coat of finish painting Colour painting -Optional |
|||
| Shipping terms | Three units also can put together shipped by bulk cargo,it can save some sea freight . | |||
