1. Material:
Internal steel plate;
External steel plate;
Between sandwiched 50mm aluminum silicate heat preservation materials;
Material:
Internal steel plate;
External steel plate;
Between sandwiched 50mm aluminum silicate heat preservation materials;
2. Heat preservation is done outside tank body.

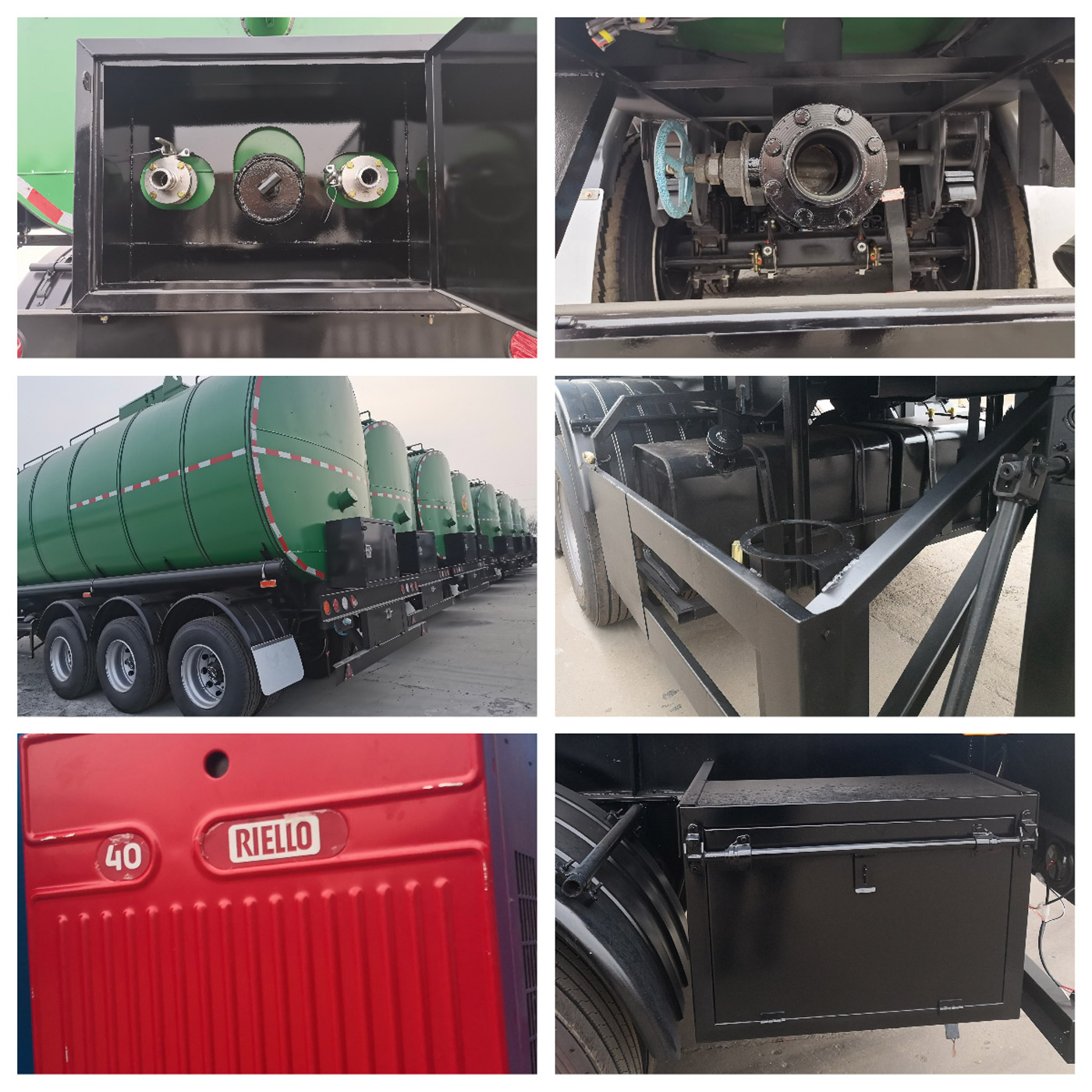

3. Heating way: heating transfer oil and imported diesel burner with electronic ignition.
4. Asphalt spreading: by nozzles and pump. Dump function optional.
5. Fabricated anti-vibration suspension.
6. Pneumatic control safety bottom valve, Corrosion resistant valve.
| Item | Specification | Remark | |
| Tank size | Outside: 12050x2500x2300mm; inside: 11850x2300x2100mm | ||
| Dimensions (mm) | 12500*2500*4000 | ||
| Tank material | Q235B | ||
| Girder material | Q235B | ||
| shape | Round shape | ||
| Loading mass (kg) | 50000 | ||
| Curing mass (kg) | 13500 | ||
| Total mass (kg) | 63500 | ||
| Head thickness | 5.75mm | ||
| Tank thickness | 5.2 mm | ||
| kingpin | 90# | ||
| Front/rear suspension(mm) |
front: -, rear: 2600 | ||
| Departure angle | front: -, rear: 18 | ||
| Leaf spring | front 8, middle 8, and rear 8 | ||
| Axle | Fuwa 13 tons | ||
| Wheelbase (mm) | 6300+1320+1320 | ||
| Number of tires | 12 | ||
| Track（mm） | 1840/1840/1840 | ||
| Tire specifications | 12.00R20 | ||
| Manhole | 2 | ||
| Discharge valve | Have | ||
| Wave board | 5 pcs | ||
| Landing gear | 28T | ||
| Brake | Drum type | ||
| Braking System | Air brake | ||
| Spare tire carrier | Have | ||
| Light | LED; Front position light, rear position light, rear tail light assembly, side return reflector | ||
| Voltage | 24V | ||
| Circuit socket | Have | ||
| Toolbox | Have | ||
| Colour | According to client requirements | ||
| Insulation Materials | 100mm rock wool | with Isolation layer | |
| Heating pipe material | 1.2mm cold rolled board skin | ||
| Burner/thermometer | have | ||
| Heating tube (mm) | Ø60*3.5 | ||
