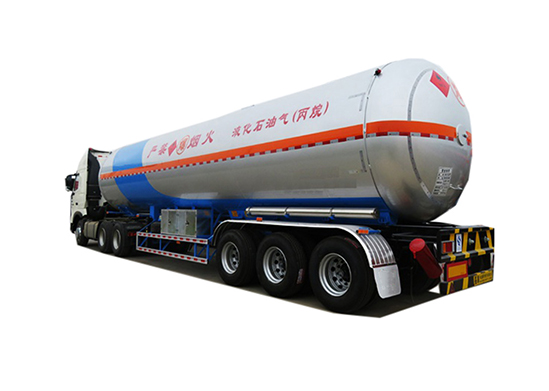

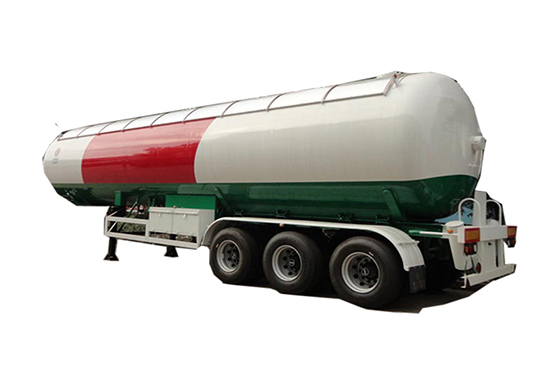

LPG tanker semi trailer is a special transport semi-trailer used to transport propane, propylene, dimethyl ether, liquid ammonia, methylamine, acetaldehyde and other liquefied gases. The liquefied gas transport semi-trailer can be divided into: two-axle liquefied gas transport semi-trailer, three-axle liquefied gas transport semi-trailer.
LPG tanker semi trailer is a special transport semi-trailer used to transport propane, propylene, dimethyl ether, liquid ammonia, methylamine, acetaldehyde and other liquefied gases. The liquefied gas transport semi-trailer can be divided into: two-axle liquefied gas transport semi-trailer, three-axle liquefied gas transport semi-trailer. The liquefied gas transport semi-trailer can be designed and modified according to the needs of customers, suitable for liquid ammonia, liquid sulfur dioxide, propylene, propane, liquefied petroleum gas, dimethyl ether, n-butane, isobutane, butene, isobutene, butadiene, cyclo Transport semi-trailer for most gases such as oxyethane.
The liquefied gas transport semi-trailer mainly consists of the following parts:

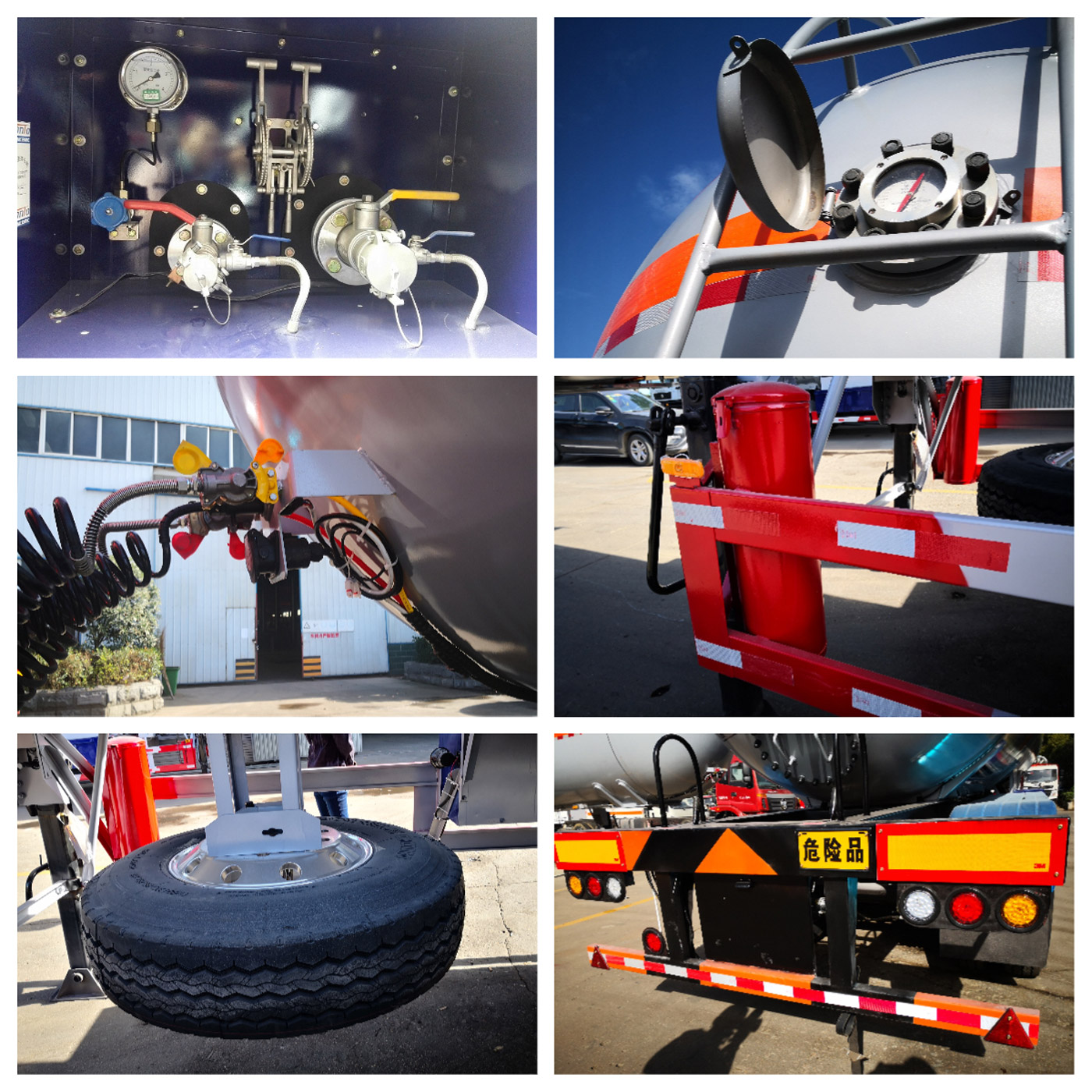

Liquefied gas tank (made of Q345R steel plate), axle, tire, outrigger, traction pin, double outlet and double valve box (pressure gauge, thermometer, tight cut valve, ball valve), iron anti-wave plate, safety valve, liquid level Meters, fire extinguishers, tool boxes, anti-static tape, spare tire racks, plastic tire fenders, etc.
| Product Overview | |||
| Transport medium | LPG | Volume | 61.9CBM |
| Dimensions(mm) | 13590*2550*4000 | Tank size(mm) | 13230×Φ2525 |
| Self weight(kg) | 18000 | Load(kg) | 26000 |
| Tank material | Head：Q420R，Cylinder：Q345R | ||
| Girder material | Q345R | ||
| shape | Cylindrical | ||
| Load mass(kg) | 26000 Propane density: 420KG/cubic meter | ||
| Overall mass(kg) | 18000 | ||
| Total mass(kg) | 44000 | ||
| Head thickness | 18mm | ||
| Tank thickness | 16mm | ||
| King pin | 90# ( 3.5 inch ) | ||
| Front/rear suspension(mm) | front: -, rear: 1800 | ||
| Departure angle | front: -, rear: 16 | ||
| suspension | Leaf spring - / 8 / 8/ 8 | ||
| Leaf spring | Front 8, middle 8 and rear 8 | ||
| Axle | Fuwa 13 tons | ||
| Wheelbase (mm) | 7010+1310+1310 | ||
| Number of tires | 12 | ||
| Track（mm） | 1840/1840/1840 | ||
| Tire specifications | 12R22.5 12PR | ||
| Landing gear | 28T | ||
| Brake | Drum type | ||
| Braking System | Air brake | ||
| Spare tire carrier | Have | ||
| Light | Front position light, rear position light, rear tail light assembly, side return reflector |
||
| Voltage | 24V | ||
| Circuit socket | Have | ||
| Toolbox | Have | ||
| Colour | According to client requirements | ||
| Hazard category | 2.1 | ||
| UN number | UN1075 | ||
| Design life | 15 years | ||
| Safety valve form | Built-in full-open | ||
| Safety valve pressure | 1.94MPa | ||
| Safety valve rated discharge pressure |
Less than or equal to 2.16MPa | ||
| Safety valve return pressure | Greater than or equal to 1.75MPa | ||
| Safety valve seat throat | 50mm | ||
| Emergency shut-off device gas phase model |
QGQJ43F-25P | ||
| Emergency shut-off device liquid phase model |
QGQJ43F-25P | ||
| Emergency shut-off device operation |
Manual mechanical control | ||
| Pressure gauge model | YN-100Z | ||
| Operating temperature | Negative 40 to 55 | ||
| Hydrostatic test pressure | 2.34MPa | ||
| Air tightness test pressure | 1.8MPa | ||
| Level gauge model | UQZ-2.5P | ||
| Level gauge form | Magnetic float | ||
| Unloading device nominal diameter | DN50 | ||
| Thermometer model | WSS-412 | ||
| Thermometer accuracy | Level 1.5 | ||
| Barrel corrosion allowance | 1.0mm | ||
| Cylinder design pressure | 1.61MPa | ||
| Remark: photo for your refence. | |||
