It is a sidewall semi-trailer with the cargo part of column plate structure. It is widely used, mainly for medium and long distance transportation of medium and heavy and bulk cargoes, with strong applicability, and has become the first choice of medium and long distance freight vehicles.
It is a sidewall semi-trailer with the cargo part of column plate structure. It is widely used, mainly for medium and long distance transportation of medium and heavy and bulk cargoes, with strong applicability, and has become the first choice of medium and long distance freight vehicles. As a transport type of semi-trailer, the rail semi-trailer can be loaded with rich types of goods, many super-long, super-wide, super-high goods can almost be loaded, such as steel, wood, stone, especially for large equipment transport loading and unloading block is small, so almost can be loaded with all the goods within the range. Some of the larger volume of goods or light bubble goods, such as transportation of building materials, furniture, sidewall semi-trailer than other semi-trailer or take advantage of.
1.The whole body is made of high quality steel, advanced technology and strict production, with reasonable structure, reliable performance, easy operation and beautiful appearance.
2.Series semi-trailer frame are all wearing beam type structure, longitudinal beam adopts flat type or gooseneck type. The height of the web is from 400mm to 550mm manganese plate welding, the longitudinal beam is welded by automatic submerged welding, the frame is treated by shot blasting, the cross beam is penetrated into the longitudinal beam and welded as a whole.
3.The suspension adopts non-independent steel plate stamping type rigid suspension, made of tandem steel plate spring and suspension support; reasonable structure, with strong rigidity and strength, used to support the load to slow down the impact.

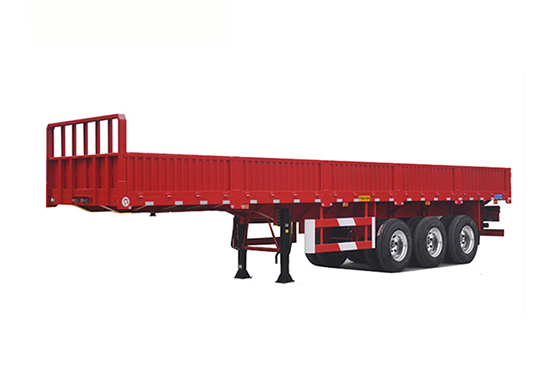

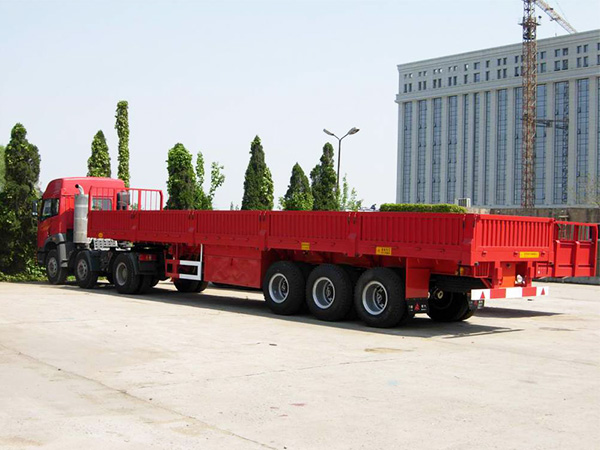

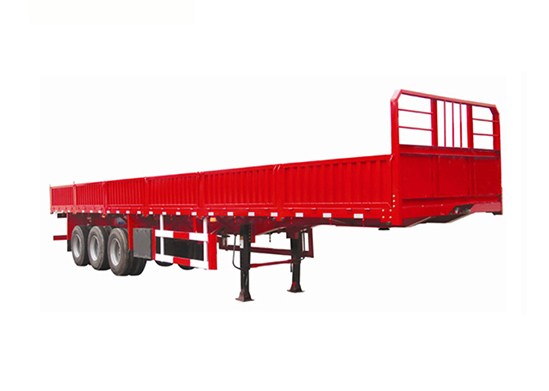

3 Axle Fence Semi-trailer | |||
Specification | |||
product name | Fence plate transport semi-trailer | ||
Dimensions | 12600×2500×2600mm | ||
dead weight | about 8 tons | ||
Warranty/Certificate | 12 months | ||
Production cycle | 15 days | ||
Load | 50 tons | ||
Specification | Dimensions | 12600×2500×2600mm | Bearing surface :size:12400mm*2350mm*800mm |
draw pin height | 1300mm | ||
wheelbase | 1840mm | wheelbase:1310mm | |
Frame body configuration | Item | material | Specification |
girders | Q345 | Height 500mm, width 140mm, upper wing plate 14mm, lower wing plate 16mm, vertical plate 8mm; | |
beam | Q345 channel steel | 100mm channel steel | |
side beam | Q345 channel steel | 16# channel steel | |
bottom plate | Q235 manganese plate | 3mm pattern soleplate | |
container lock | 12 Locks | ||

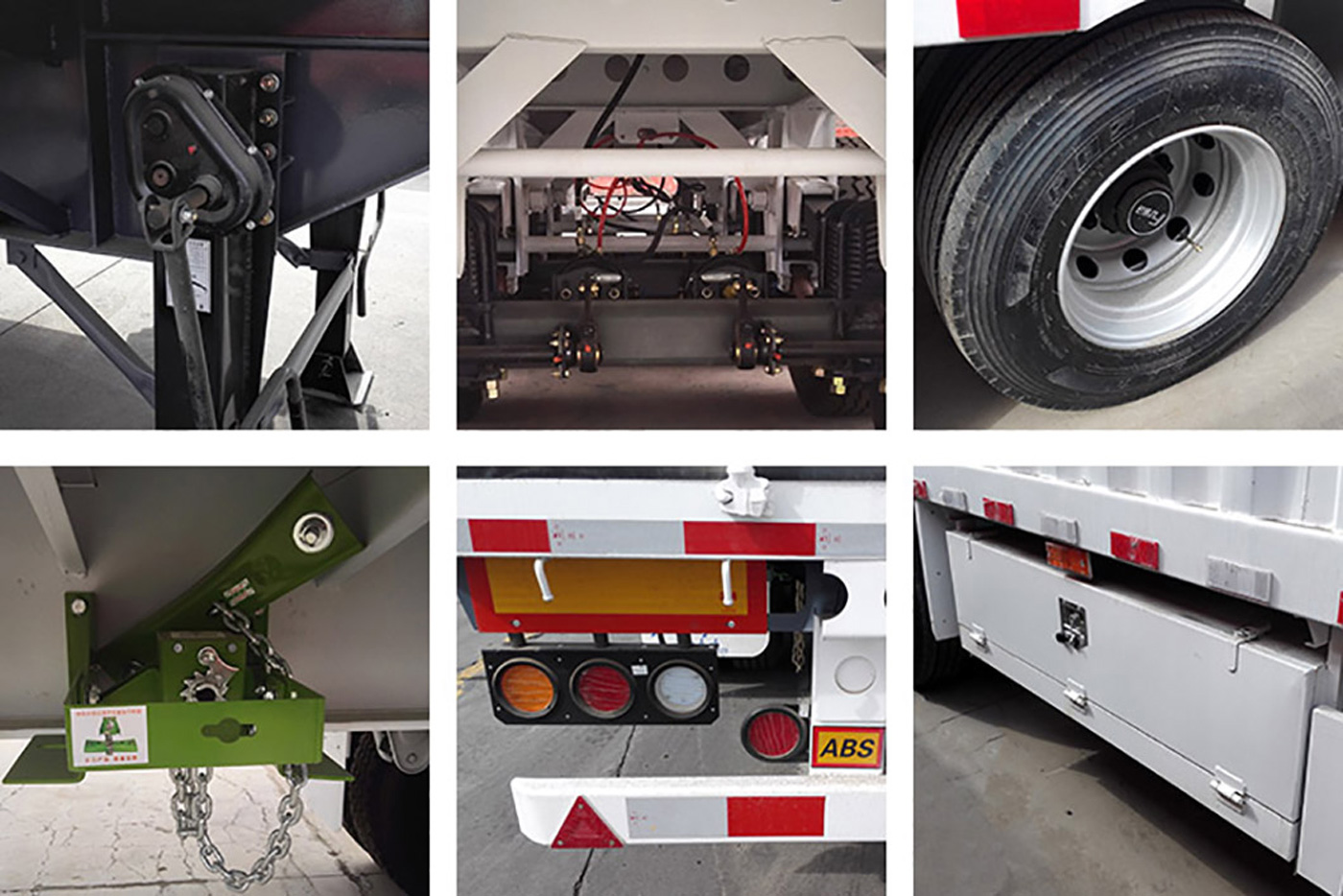

Accessories | suspension | 3-axis mechanical suspension | leaf spring:90*13*10-6 racks |
Axle Specification/Brand | 13T/1840 Factory with Fuhua | number of axles:3 | |
Tire Size/Brand | 12R22.5 | Number of tires:12 | |
Steel ring specification/brand | 9.0-22.5 | Number of rims:12 | |
Outrigger Specifications/Brands | 28T/Asia China | Traction Pin Specifications:50# or 90# interchangeable type | |
Brake system | Brake valve brand | WABCO | brake chamber specification/quantity/T30/30-6pcs |
Brake system | Emergency braking system, air brake, dual air pipelines, 6 T30/30 brake air chambers, two 40L air tanks | ||
Picture for reference only |
