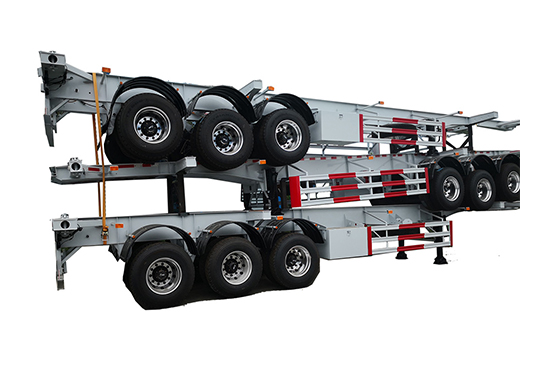

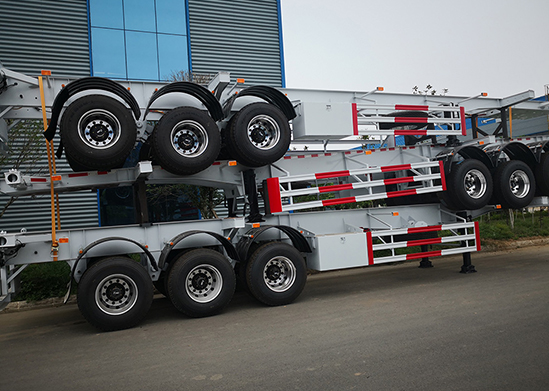

Skeleton Container Semi Trailer

Send Email Inquiry Now

Product Introduction

Shipping Container Trailer is usually made of steel. This is where the containers get loaded and offloaded through the use of overhead cranes. 40 feet container trailer can be used for the transportation of containers of various lengths: 20ft or 40ft.
JSXT has different types of Container Chassis for Sale and other trailers. We custom container chassis, Container Trailers, Container semi trailer, and a range of other logistics products.
Specification:
Model: 40ft Shipping Container Trailer
Dimension: 13000x2500x1550mm
Material: aluminum alloy
Axles: 3 axles
Tire: 12 units
Twist Locks: 12 sets (lifting or screw type)
King pin：90#
Landing gear：JOST
Brake system: WABCO

Product Name	60-ton 40-foot skeleton transporter		Warranty Period	12 Months
Shipping Media	40ft, 220ft and 120ft containers and bulk cargo		Production cycle	15 days
Dimension	1370027701692		Overall mass	67 tons
Self-weight	About 7 tons		Load	60 ton
Frame body configuration	Traction pin height	1300mm	Front/rear suspension	/
	wheelbase	1310mm	tread	2050mm
	Item	Material	Specification
	beam	Q345B	Cross-sectional height 500mm, 16/10/18 synthetic I-beam, material Q345B
	Crossbeam	Q345B	2002008 square tube
	Locks	Automatic container warp stopper	6 unit
Accessories	Suspension	2-axis heavy-duty mechanical suspension	Plate Spring	8 unit 901610
	Axle	16T/fuwa	Number of axles	3
	Tires	12R22.5	Number of tires	12
	Steel Rings	9.0R22.5	Number of steel rings	12
	Leg support	28ton	Traction pin specifications	50# or 90# interchangeable type
Braking System	Brake Valve Brands	WABCO	Brake air chamber	T30/30-*4
Braking System	Braking System	Emergency brake system, air brake, double air pipeline, 4T30/30 brake air chamber, two40L air storage tanks
Electrical circuit system	Circuit sockets	7-hole socket	Voltage	24v
Electrical circuit system	Lamps	no
other	Toolbox	1 unit	Tools	Shaft head wrench, rocker
other	spare tire carrier	1 unit
color	According to customer requirements
painting	Acrylic anti-corrosion paint
