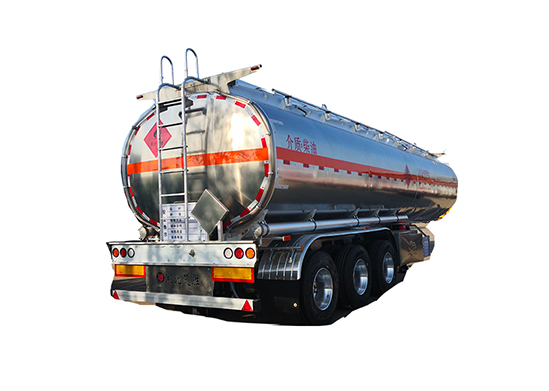

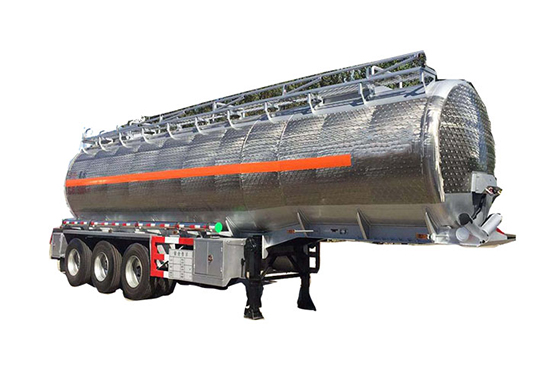

The stainless steel tank semi-trailer is mainly used for large-scale oil transportation, and the tonnage is generally around 40-60 cubic meters. Semi-trailers usually include: two-axle semi-trailer and three-axle semi-trailer.
The stainless steel tank semi-trailer is mainly used for large-scale oil transportation, and the tonnage is generally around 40-60 cubic meters. Semi-trailers usually include: two-axle semi-trailer and three-axle semi-trailer. The material of the square tank body of the oil transport semi-trailer is made of S304 or S316 stainless steel plate. The tank body has built-in multi-channel reinforced anti-wave partition boards. body strength. The mouth of the combination tank is located on the top of the tank, and there is a small self-locking cover on the top of the big cover, and a breathing valve is installed on the upper side of the big cover to ensure that the atmospheric pressure inside and outside the tank is consistent; it is equipped with an electrostatic grounding wire. The oil pump system is installed, and the power is taken from the gearbox side through the power take-off, which can be self-priming and self-discharging; it is equipped with two oil suction pipes, equipped with quick-fit joints, and the suction distance is 6 meters. Two fire extinguishers and special tools. The oil semi-trailer is divided into two parts, the oil tank body and the frame or bracket supporting the tank body.
| Item | Specification | ||
| Tank material | stainless S304 | ||
| Girder material | stainless S304 | ||
| Production cycle | about 20 working days | ||
| Volume | 40000 Liters | ||
| Dimensions | 12600*2500*3900mm | ||
| Tank size | 12400×2200×1800mm | ||
| shape | Elliptical | ||
| Loading mass (kg) | 37000 | ||
| Curing mass (kg) | 12000 | ||
| Total mass (kg) | 49000 | ||
| Head thickness | 5 mm | ||
| Tank thickness | 5 mm | ||
| kingpin | 90# | ||
| Departure angle | front: -, rear: 1680 | ||
| suspension | Leaf spring 8 / 8 / 8 | ||
| Leaf spring | Top 8, middle 8, and last 8 | ||
| Axle | Fuwa 13 tons | ||
| Wheelbase (mm) | 7000+1320+1320 | ||
| Number of tires | 12 | ||
| Track（mm） | 1840/1840/1840 | ||
| Tire specifications | 12R22.5 12PR（13 with spare tires） | ||
| Manhole | 2 units DN500 | ||
| Discharge valve | 2 units 3 inches | ||
| Respiration valve | 2 units | ||
| Wave board | 6 PCS | ||
| Support leg | 28T | ||
| Brake | Drum type | ||
| Braking System | Air brake | ||
| Spare tire carrier | Have | ||
| Light | Front position light, rear position light, rear tail light assembly,side return reflector |
||
| Voltage | 24V | ||
| Circuit socket | Have | ||
| Toolbox | Have | ||
| Colour | According to client requirements | ||
| compartments | 1 unit | ||
| The ladder | have | ||
| Oil discharge hose | have 2 units, 6 meters each | ||
| The top walkway | have | ||

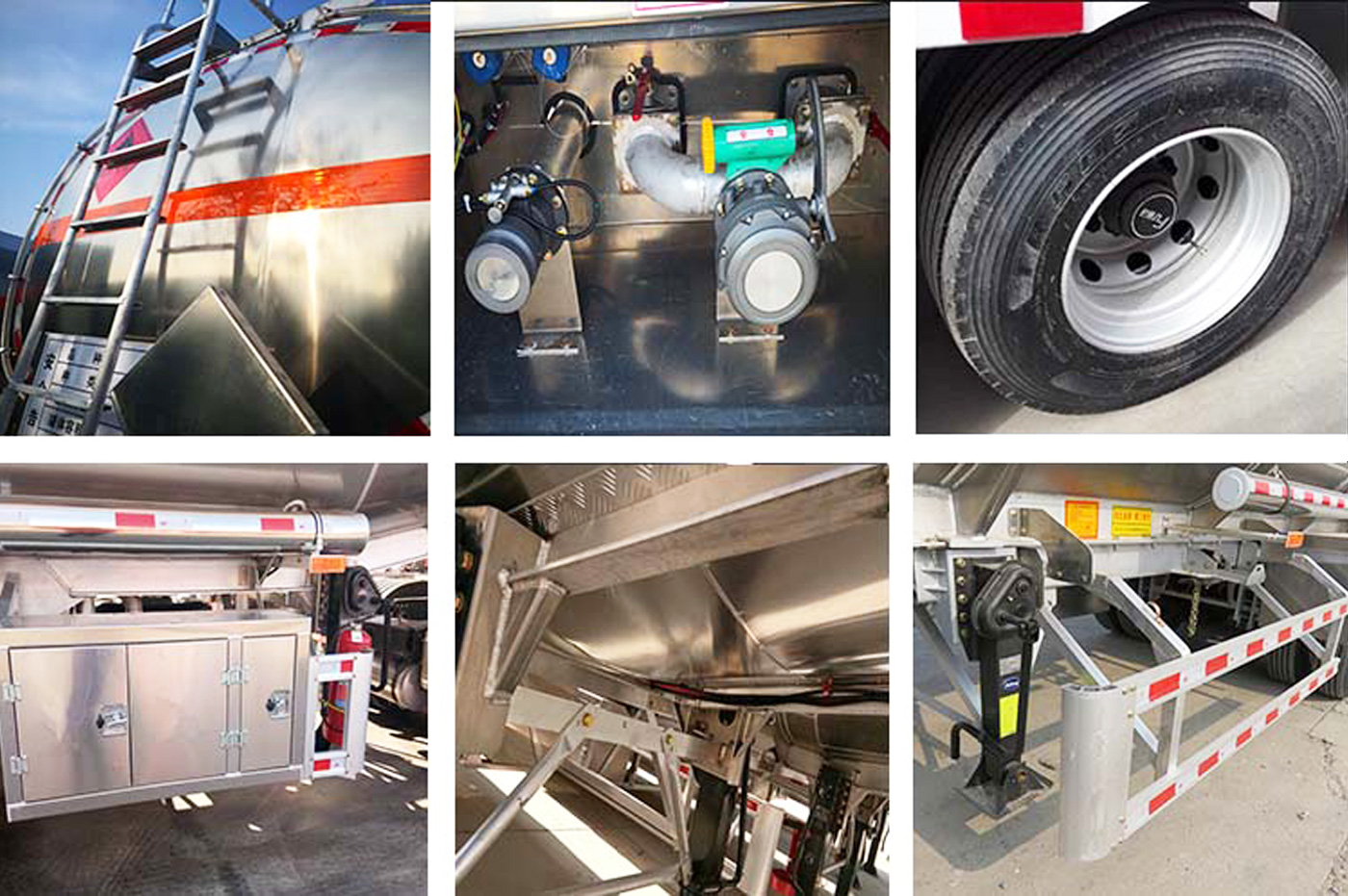

| Remark | pictures for reference only | ||
| Accessories | Carbon steel rear bumper, carbon steel accessory (movable guardrail, 1 tool box, exit box, side guardrail, non-slip walkway, rear ladder, gun barrel) | ||
